CRC Cutoff Control (Circumferential Register Control)


Newly redesigned cutoff control with the latest electronics and unique features

Operating Principle
Two high‑speed microprocessors in the CRC monitor the relationship between the print and the process cylinder. CRC then determines the optimum correction for best‑quality output. Corrections are made by advancing or retarding the process relative to the web. CRC is a universal closed‑loop process controller, which can be used in various registration applications like Sheeter, Folder, Gluer, Perforator, Die-Cutter, Coater, and Rotary Cutter. Does not need a dedicated mark in a clear channel

It is used for monitoring and correcting print-to-cut or print-to-process registration for web-processing lines.



Highlights

  • Controls all machines requiring print-to-process register monitoring (Folder, Sheeter, Rotary Cutter, Perforator, Die Cutter, Gluer, Coater)
  • Design uses a commercially available PLC
  • Reduces make-ready and splice-cycle waste
  • Improves overall process quality
  • Easy switch from dark-sensing to light-sensing mode via the touchscreen
  • Equally effective for multi-web operation
  • 30-day money-back guarantee
  • For speeds up to 100,000 impressions/hour
  • Attractive — better than a 6‑month ROI
  • Provides valuable statistical data for troubleshooting and press-performance optimization
  • Uses a commercially available web scanner with LED lighting, eliminating the need to change bulbs
  • Models are available for single- and double-axis control
  • Multiple units can be easily combined to control complex processing lines
  • A special model available for offline-process-control

To learn more about our cutoff control system, download the brochure and contact us today.

Download the CRC brochure here

Technical Highlights

Encoder

  • High resolution
  • Rugged construction
  • Quick disconnect cable
  • Custom mounting brackets for process cylinder and drive shaft mounting

Web Scanner

  • LED light source with 100,000 hour average life
  • Quick disconnect cable
  • Universal mounting brackets for positioning

Central Processing Unit

  • Modular construction
  • Modules can be swapped with simple tools
  • True digital processing for accuracy and reliability

AC Synchronous Motor

  • Synchronous motor for accurate positioning
  • Phase Shift (R-C) Network supplied with the motor
  • Universal mounting brackets and drive provided for easy hook up to the existing correction mechanism

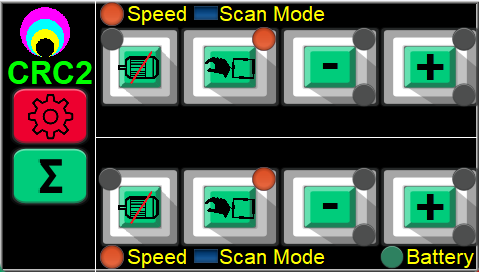

Operator Panel

  • 4.3" color touchscreen
  • Numeric input for direct correction / parameter entry
  • Multiple remote screens can be installed
