SRC Web Guide Control Retrofit

A versatile, efficient, and intelligent web-guide control-retrofit

SRC is a universal control-retrofit package that replaces obsolete electronics on most mechanically sound web guides, restoring full performance at a fraction of the cost of a new system. It installs quickly — your maintenance team can fit it without removing the guide from the press line. SRC uses modern, commercially available electronics and adds valuable new features that enhance reliability and long‑term serviceability.


It providesprecision monitoring and automatic correction of lateral web position in high‑speed web‑processing lines

Features

Speed and Accuracy

A 12‑bit analog‑to‑digital converter in SRC detects web movement as small as 0.001 inches, ensuring precise edge tracking. The system operates reliably at line speeds up to 3,000 feet per minute.

Motorized scanners

SRC scanners automatically seek the web edge and lock onto it. They can also pre‑position the web at a programmed reference point or maintain it at an operator‑specified location.

Reduced waste

With its fast response time, SRC handles splices and tension upsets with significantly less waste than competing systems. During normal production, built‑in statistical optimization further enhances quality and stability.

Customization

SRC is a true digital control system. There are no potentiometers or setup switches — every parameter is entered digitally through the Operator Panel.

Statistical quality monitor

SRC eliminates subjective quality guesswork. The SQM feature provides numeric values that let you compare actual quality against job specifications. This data is invaluable for troubleshooting and optimizing press parameters.

Splicer feedback

SRC links directly with splicer controls to automatically eliminate roll‑setup errors, delivering cleaner splices, smoother startups, and reduced waste.

Download the SRC brochure here

TECHNICAL FEATURES

Central Processing Unit

Modular construction
Modules can be swapped without requiring any tools
True digital Processing for accuracy and reliability

Correction Motor

Can drive a wide variety of motors. Call to check compatibility with SRC
Optional DC motor interface available with retrofit package

Web Sensor

Infrared LED light source with 100,000 hour average life
Rugged Aluminum housing
Quick disconnect cable
Universal mounting brackets for positioning anywhere across web

Operator Panel

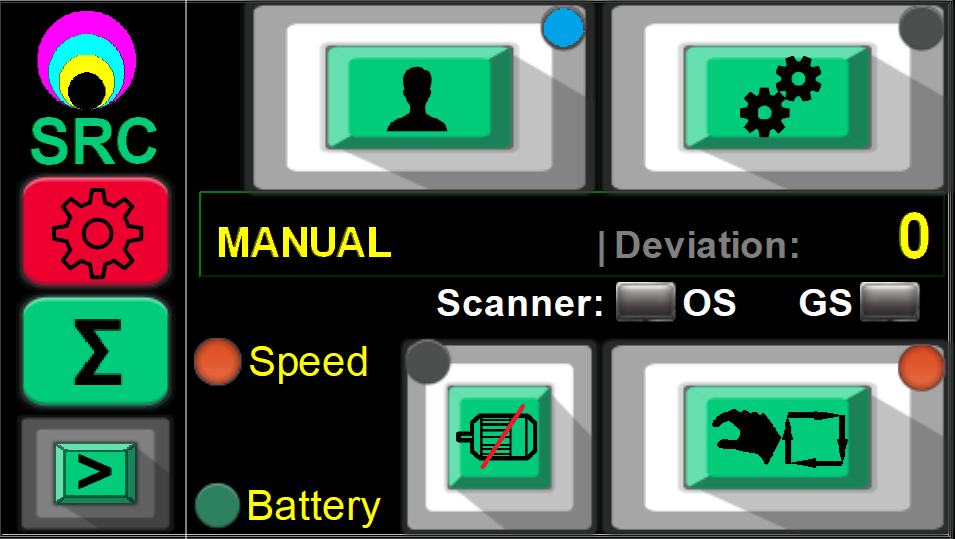

4.3" Color Touch Screen
Numeric input for direct correction / parameter entry
multiple remote screens can be installed
